3DC OBJViewer© is a simple viewer of 3D objects that you can download and install for free.
At the moment, it is possible to load only 3D objects in OBJ format (Wavfront format).
Warning: the application contains banner advertisement!

3DC OBJViewer© is available to download at the Windows Store.
Download now 3DC OBJViewer©!

Do you have found a bug? Do you have any suggestions to give me about this App?
Send a claim with the module at the end of this page.
Go to the support module.

List of arguments


Main window
Main window

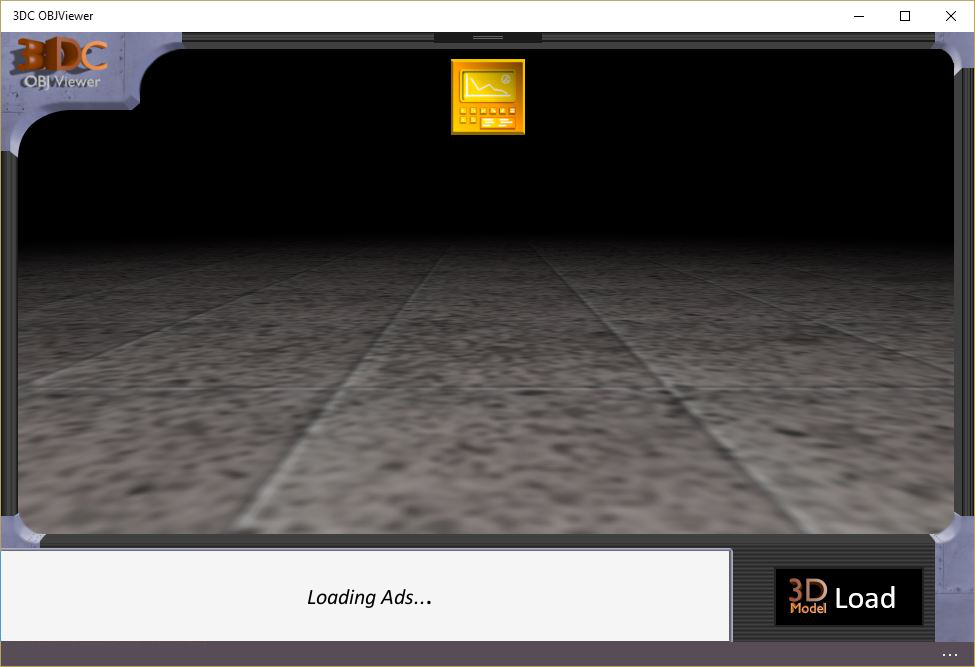

Starting from the main window you can note the style of the application (does it remind you something?).
The major part of the window is dedicated to rendering.
At the top side of the window you can find the dashboard button that it is marked by a continued blink.
At the bottom side there is the area dedicated to the banner advertisement (on the left), while on the right there is the loading button to be used for load a 3D object.

The application is not limited to show a 3D model in the scene but it allow you also to make some operation on it (see the following paragraphs).
Depending on the chosen command, additional controls or pop-up will appear.
As you may ask from an App, depending on the resolution of your device, the elements of the window could be positioned and/or scaled in order to garantee an easy use of the application.


Dashboard
Dashboard

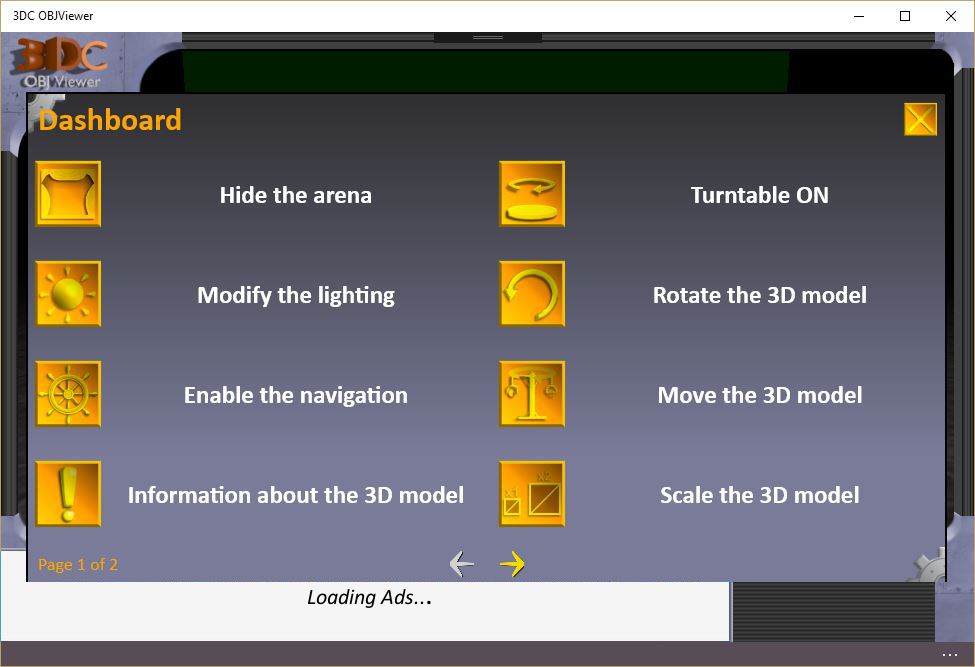

The following commands are available. They are split in two pages:

  • Hide/Show the arena. Show or hide the arena where the 3D model is placed;
  • Modify the lighting. Allow you to increase or reduce the lighting of the materials of the object;
  • Enable/Disable the navigation. Enable or disable the ability to navigate in the arena. For more information, see the paragraph Navigation;
  • Information about the 3D model. Display some information about the model. For more information, see the paragraph Information about the 3D model;
  • Turntable ON/OFF. Enable or disable the rotation of the 3D model. That model will rotate cyclically and automatically by 360° around the Y axis, in the same manner of a turntable;
  • Rotate the 3D model. Allow you to rotate manually the 3D model considering its barycenter. There are available two rotation modality: around X/Y axis and around Z/Y axis;
  • Move the 3D model. With this command you can move a 3D model where you want in the rendering area;
  • Scale the 3D model. Allow you to apply a scale factor;
  • Rendering options. From this panel you can modify some options for rendering: near and far plane of the camera, field of view, radius of the spot light, direction components Y and Z of the directional light (the X component doesn't matter);
  • Navigation parameters. The navigation parameters include the movement offset and the rotation offset;
  • About.... Display the information about the application and support. See the paragraph Support and information about the application.
The preferences of user specified in the Rendering options and Navigation parameters panel will be locally saved in a configuration file. In this way the App can load them at the next launch.

Please note: the only value that is not saved is the spot light radius. This radius is automatically calculated by the App depending of the size of the 3D model that you are loading.


Navigation
Navigation

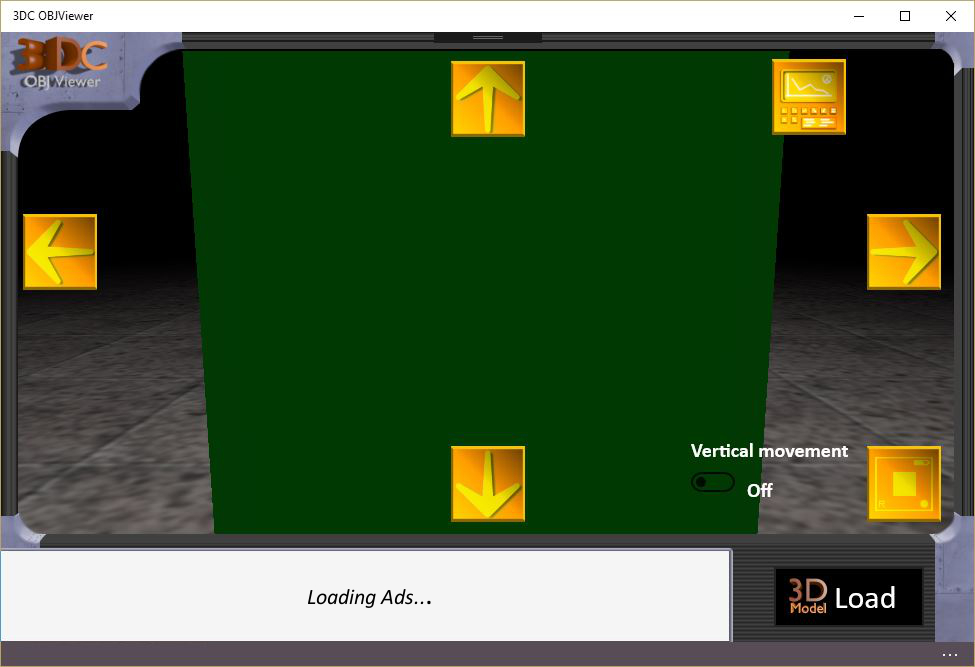

When the navigation modality is enable, they will appear four arrows(up, down, right and left), a switch and another button on the bottom right side of the screen.
The arrow "up" is used for moving forward; the arrow "down" is used for moving back (in the opposite direction); the arrows "right" and "left" are instead used for rotating the camera around the Y axis, in this way you can also change the direction of the movement.
With the tracking (by clicking with the left button of the mouse or by touch if you are using a touch screen), you can modify the field of view of the camera.
The button on the bottom right side of the screen allow to restore the camera in front of the object.
By switching on the switch you can modify the Y position of the camera. In this modality only the button "up" and "down" are enabled.


Information about the 3D model
Information about the 3D model

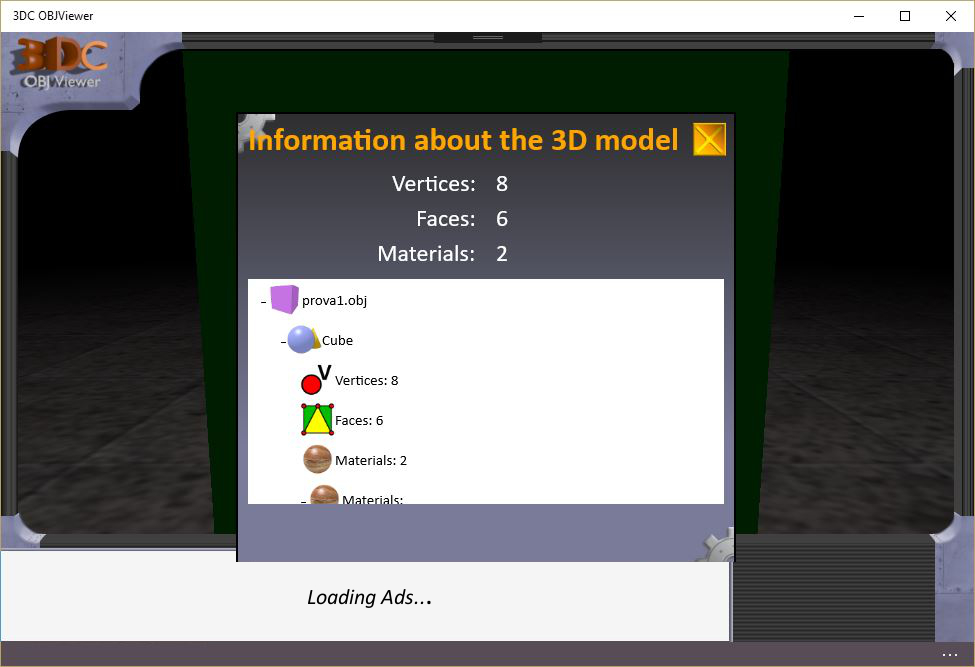

That panel display some information about the 3D model that you have loaded in the scene.
Here you can find:

  • Total number of vertices, faces and materials of the 3D model;
  • Number of vertices, faces and the list of materials for every object that compose the model;
  • For every materials:
    • Material name;
    • Number of vertices;
    • Number of triangular faces;
    • RGB components of the ambient color, diffuse color and specular color;
    • Value of the specular exponent;
    • Lighting factor. You could refer to the MTL documentation at Wikipedia for the meaning;
    • Fade. You could refer to the MTL documentation at Wikipedia for the meaning;


Loading a 3D model
Loading a 3D model

A 3D model is loaded in the scene by the library.

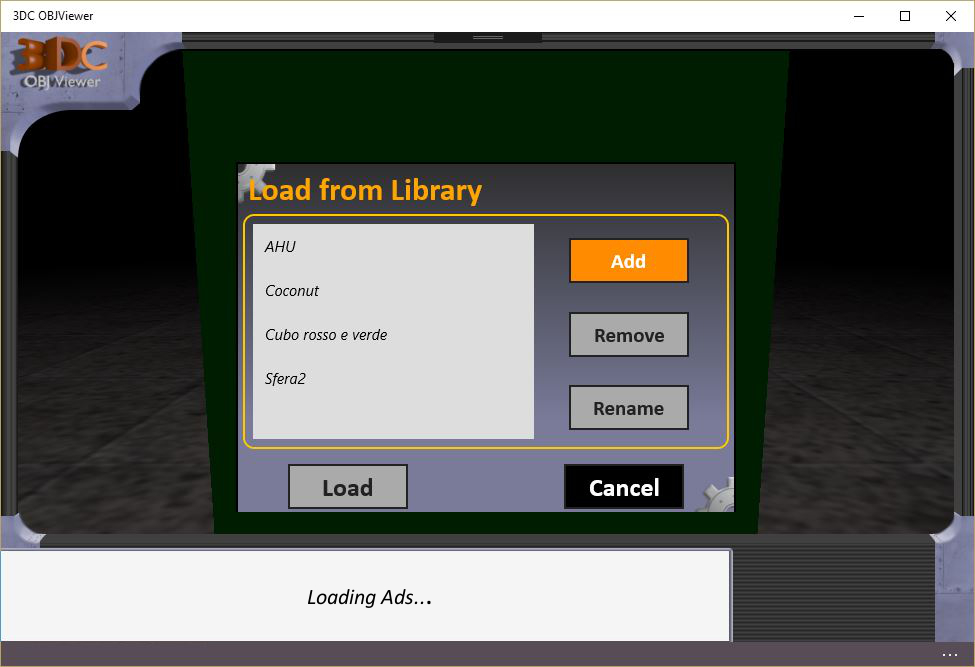

Press the button Load in the bottom right side in order to open the library.
If you already had got some 3D models, you can select one of them and press Load.
Use the command Add for insert a new model in the library. In the next panel, type the name you want to use for the object and press the button Load file. Select now all the files needed.

Warning: when the App will ask you to pick the files for a model, select ALL the file needed. So, select the OBJ file, the MTL file and all the textures.

At this point, you can go back to the library panel, select the 3D model in the list and load it in the scene.

Please note: the loading procedure can take few seconds or various minutes. This waiting time depends on the dimension of the model file.

With the button Remove you can delete a model from the library.
With the button Rename you can update the name showed in the library for a model.


Information about 3DC OBJViewer
Support and information about the application

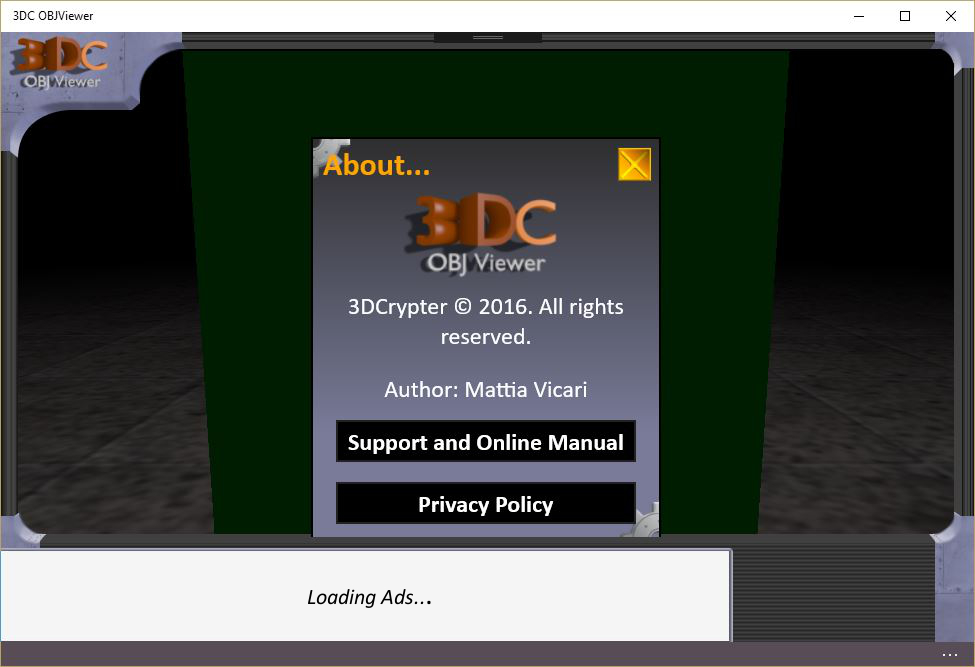

In this page you can find the information about the App, included the information about the author, the link to this manual and the privacy policy.

For doing a claim about this App or simply for supplying advises on that or future applications, you can use the module below.


Privacy Policy

The privacy policy of 3DC OBJViewer© is available here.
